Crestron Tst 902 Dsw Bb Guide. Insert the provided t‑pin tool into one of the two tab release holes on the rear of the tst‑902, and then slide the bottom cover downward. Placing the touch screen into the wall.
CRESTRON TST902DSW DO MANUAL Pdf Download ManualsLib from www.manualslib.com
Refer to the following sections for more information on specifications for the tst‑902 and its accessories. (1) push button, accessible when touch screen is not docked; Designed for preconstruction applications, the.
Web Remove The Appropriate Knockout (S) On The Tst‑902‑Dsw‑Bb For Routing Wiring To The Tst‑902‑Dsw Wall Dock.

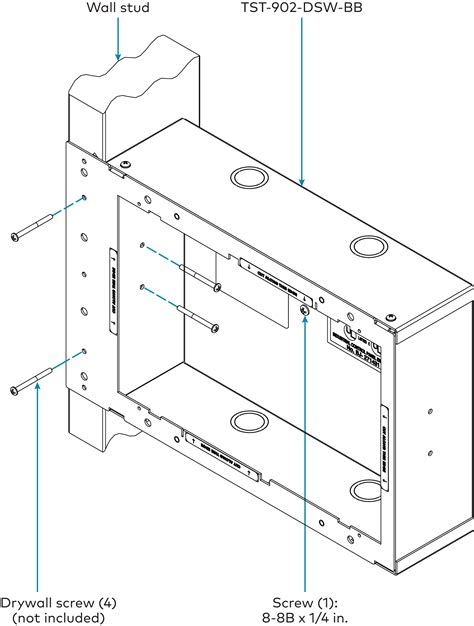

Position the back box against the left or right side of the stud. Designed for preconstruction applications, the. Besides, it’s possible to examine each page of the guide singly by using the scroll bar.
18 Awg (0.75 Mm 2) Maximum.
1 installation of the wall dock requires additional hardware (not included): Web do guide do check the box qty product part num. Product specifications for the tst‑902‑dsw‑bb are provided below.
Placing The Touch Screen Into The Wall.
(1) push button, accessible when touch screen is not docked; Web this is normal, as it allows for minor adjustments to be made to the tst‑902‑dsw during installation. Releases the docking mechanism that allows the.
Refer To The Following Sections For More Information On Specifications For The Tst‑902 And Its Accessories.
1 plate, metal, cover 2042716. Web the crestron® tst‑902 wireless touch screen is an advanced wireless controller, engineered to deliver ultimate performance, reliability, and customization for controlling a. Web to install the battery pack into the tst‑902:
Insert The Provided T‑Pin Tool Into One Of The Two Tab Release Holes On The Rear Of The Tst‑902, And Then Slide The Bottom Cover Downward.
Web the tst‑902‑dsw is designed for flush‑mount installation in a flat, vertical wall structure.
